Emporia Vue Gen 2 Energy Monitor with 200A sensors and optional 50A sensors for circuits

Emporia Vue Gen 2 Energy Monitor with 200A sensors and optional 50A sensors for circuits

Emporia Vue Gen 2 Energy Monitor with 200A sensors and optional 50A sensors for circuits

Regular price $149.00

Emporia has developed the next generation of the Vue Energy Monitor. Committed to bringing the best value at the lowest price possible, the Vue provides everything you need to monitor your entire home's energy usage in real time with 200A load sensors, as well as optional 50A sensors  to allow you to monitor individual circuits (choice between 8 and 16). Not only can you see how much energy your home is using at any moment and over time, but you can also monitor how your individual appliances affect your energy bills.

Features and Benefits:

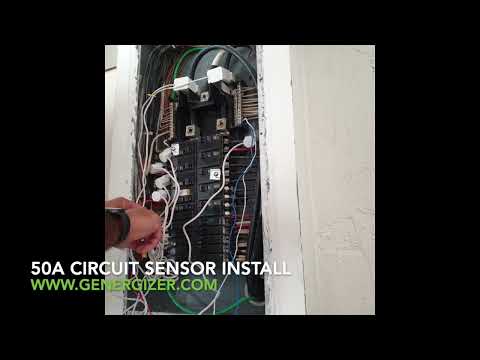

  • INSTALLS IN CIRCUIT PANEL of most homes with clamp-on sensors. Supports single-phase up to 240VAC line-neutral; single, split-phase 120/240VAC; and three-phase up to 415Y/240VAC (no Delta). Panels with access only to busbars will need flexible sensors available from Emporia Energy. Includes DIY instructions, though a professional electrician is recommended.
  • 24/7 ENERGY MONITORING: Monitor your home's real power anywhere, anytime to prevent costly repairs, conserve energy, and save costs. Monitor solar / net metering. PROTECTED BY A 1-YEAR WARRANTY.
  • LOWER YOUR ELECTRIC BILL: Gauge real-time spending and get actionable notifications to understand where you can save costs.
  • REAL-TIME ENERGY DATA: REQUIRES 2.4 GHz WIFI WITH AN INTERNET CONNECTION to monitor energy use with iPhone / Android / Web app. Vue sensors provide 1-second data and are accurate from ±2%. The Vue is UL and CE Listed for your safety. 1 second data is retained 3 hours, 1 minute data is retained 7 days, 1 hour data is retained indefinitely. Export the data whenever you want in the app.
  • APPLIANCE MONITORING WITHOUT GUESSWORK: Comes with eight 50A sensors to accurately monitor your air conditioner, furnace, water heater, washer, dryer, range, etc.

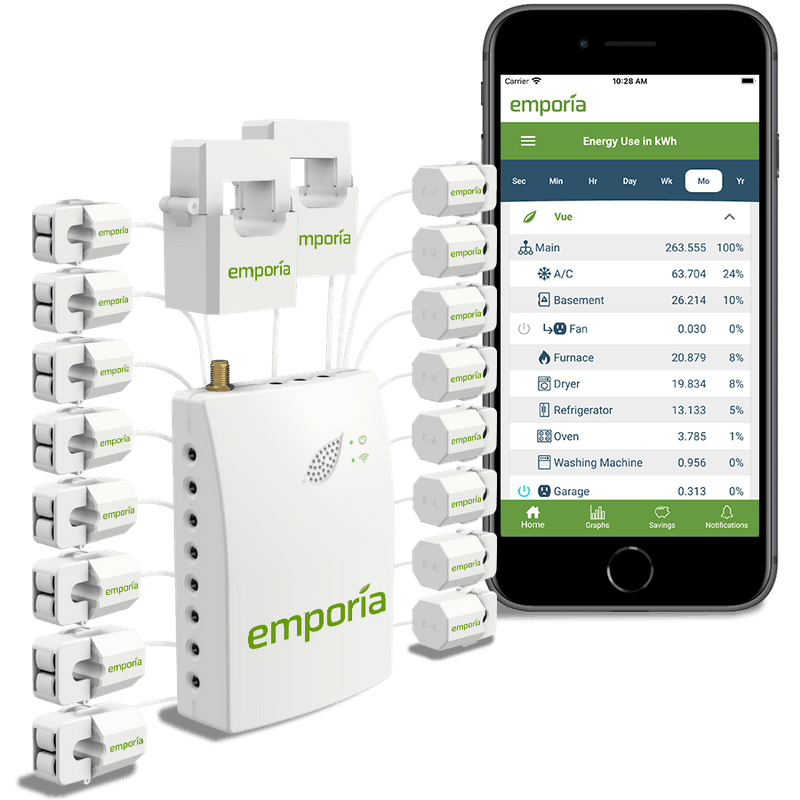

  • Bundle includes:
    • Gen 2 Vue Energy Monitor
    • Two 200A current sensors for service mains
    • Wire harness
    • Extra wire & wire nuts
    • Wifi antenna & cable
    • Optional - 8 or 16 x 50A current sensors for individual circuits
  • Power the Vue directly from a 15A or 20A breaker
  • Professional installation recommended
  • Granular 1-second data interval
  • Operates regardless of your utility
  • Optional 50A sensors to monitor individual circuits
  • Interact with your Emporia Vue through your mobile device or laptop
  • Real-time monitoring of your energy usage and production with helpful units and measurements
  • Actionable notifications will help you:
    • Conserve energy
    • Lower carbon emissions
    • Increase grid reliability
    • Generate energy savings
    • Shift usage patterns from peak to off-peak
    • Get clear calculations that show your savings when you perform actions recommended by the Emporia Vue

Check out the Technical Specs | Download the Spec Sheet PDF

Vue energy monitor dimensions:

  • 4.1" x 3.1" x 1.1" (105mm x 80mm x 30mm)

200A sensor dimensions:

  • 2.6" x 1.7" x 1.6" (65mm x 44mm x 41mm)
  • Window diameter: 1" (26mm)
  • Cable length: 39" (1m)
  • Connector plug: 3.5mm

50A sensor dimensions:

  • 1.6" x 0.9" x 1" (41mm x 23mm x 26mm)
  • Window diameter: 0.39" (10mm)
  • Cable length: 39" (1m)
  • Connector plug: 2.5mm



Smart Energy Home

The Emporia Vue Energy Monitor installs in an electrical panels. It supports either single-phase up to 240VAC line-neutral; single, split-phase 120/240VAC; and three-phase up to 415Y/240VAC (no Delta). We recommend using a licensed electrician. The Vue monitors the total energy use and solar net metering of your home through a simple iOS or Android app. Additionally, you can add 50A sensor bundles to monitor up to 16 individual circuits per Vue.

Track energy use in real time

The Vue Energy Monitor doesn't guess what appliances you have. It's connected directly to the circuits you care about, like your furnace, A/C, refrigerator, or solar generation. It monitors them 24/7. You can also add Emporia Smart Plugs to monitor the smaller things you care about. You'll know exactly how much energy you're using or generating in real time and historically by the minute, hour, day, week, month, and year.

The Gen 2 Vue Energy Monitor keeps tabs on your energy use 24 hours a day. The Emporia App has valuable alerts that protect your family and your home. Set alerts for times when you approach monthly peak energy use, when you leave lights or an oven on, when things like sump pumps don't turn off or on, and when when your A/C uses more energy than it should. Download the App.

It keeps track of the energy used in your home to help you identify appliances and circuits that waste energy and increase monthly bills. The Emporia App suggests valuable savings opportunities and also allows you to set alerts to keep you notified when appliances and lights have been left on.

The Emporia Gen 2 Vue monitors renewable energy net metering out of the box, giving you clear measurements of how much energy is being returned to the grid (and saving you money). With the 50A sensors, you can also monitor your energy generation in real time and historically by the minute, hour, day, week, month, and year.
