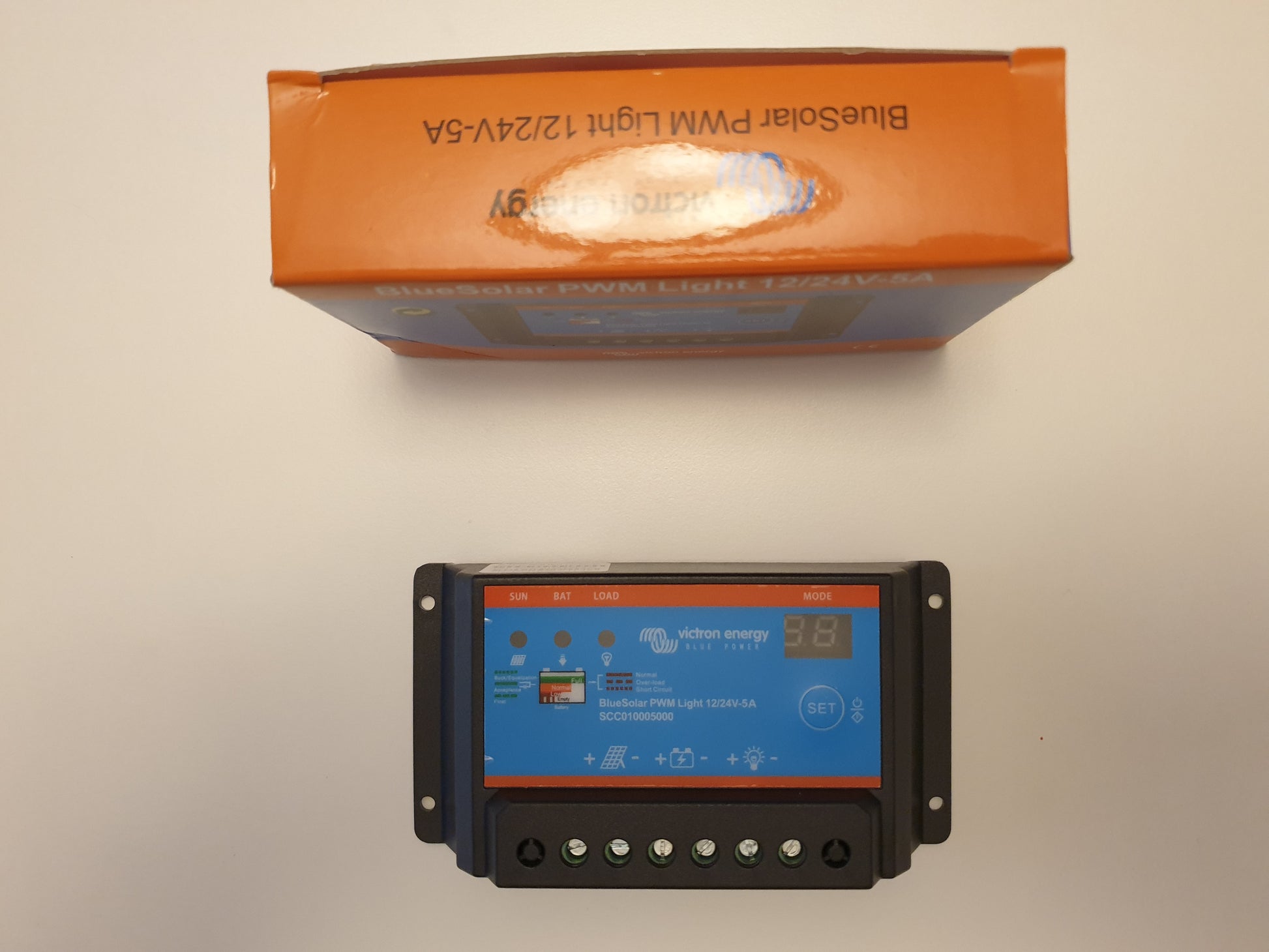

Victron Energy BlueSolar PWM Light Charge Controller 12/24V-5A

Victron Energy BlueSolar PWM Light Charge Controller 12/24V-5A

Regular price $29.00 USD
Regular price Sale price $29.00 USD
Sale Sold out
Shipping calculated at checkout.

The Victron BlueSolar PWM charge controller is ideal for basic applications where a solar panel is used to charge a 12V or 24V battery. This charge controller has LED indicators charge status, battery status and load output status.

This controller automatically detects the system battery voltage (i.e. 12V or 24V) and adjusts the settings accordingly. The load terminals can also be programmed to turn on automatically after sunset and stay on from 1 to 13 hours. It can also be set on dusk to dawn mode, battery voltage or manual load control.

• Load output with low battery voltage disconnect function.
• Lighting control function, one timer only.
• Two digit seven segment display for quick and easy setting of the load output functionality, including timer setting.
• Three stage battery charging (bulk, absorption, float), not programmable.
• Load output protected against over load and short circuit.
• Protected against reverse polarity connection of the solar array and/or battery.

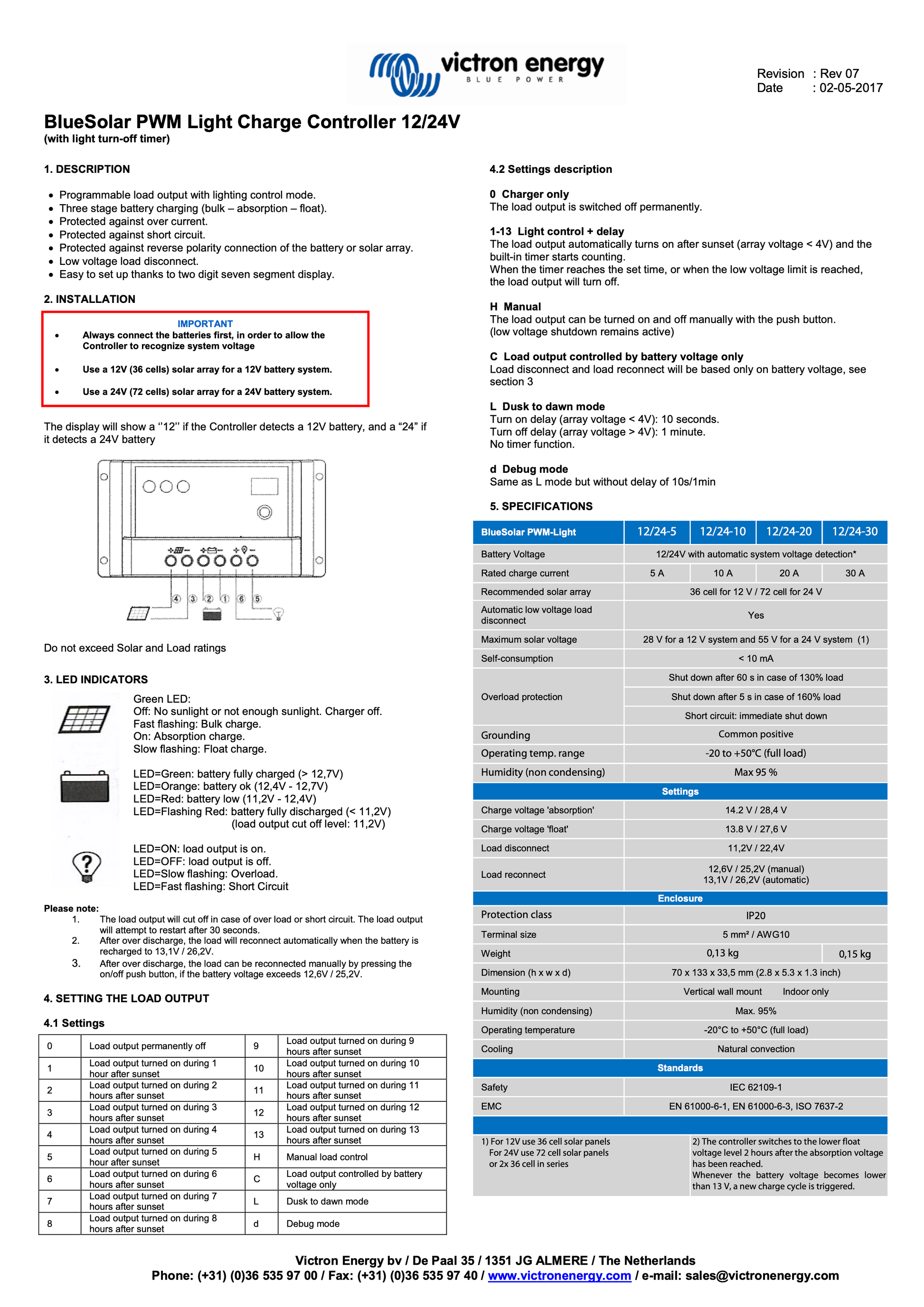

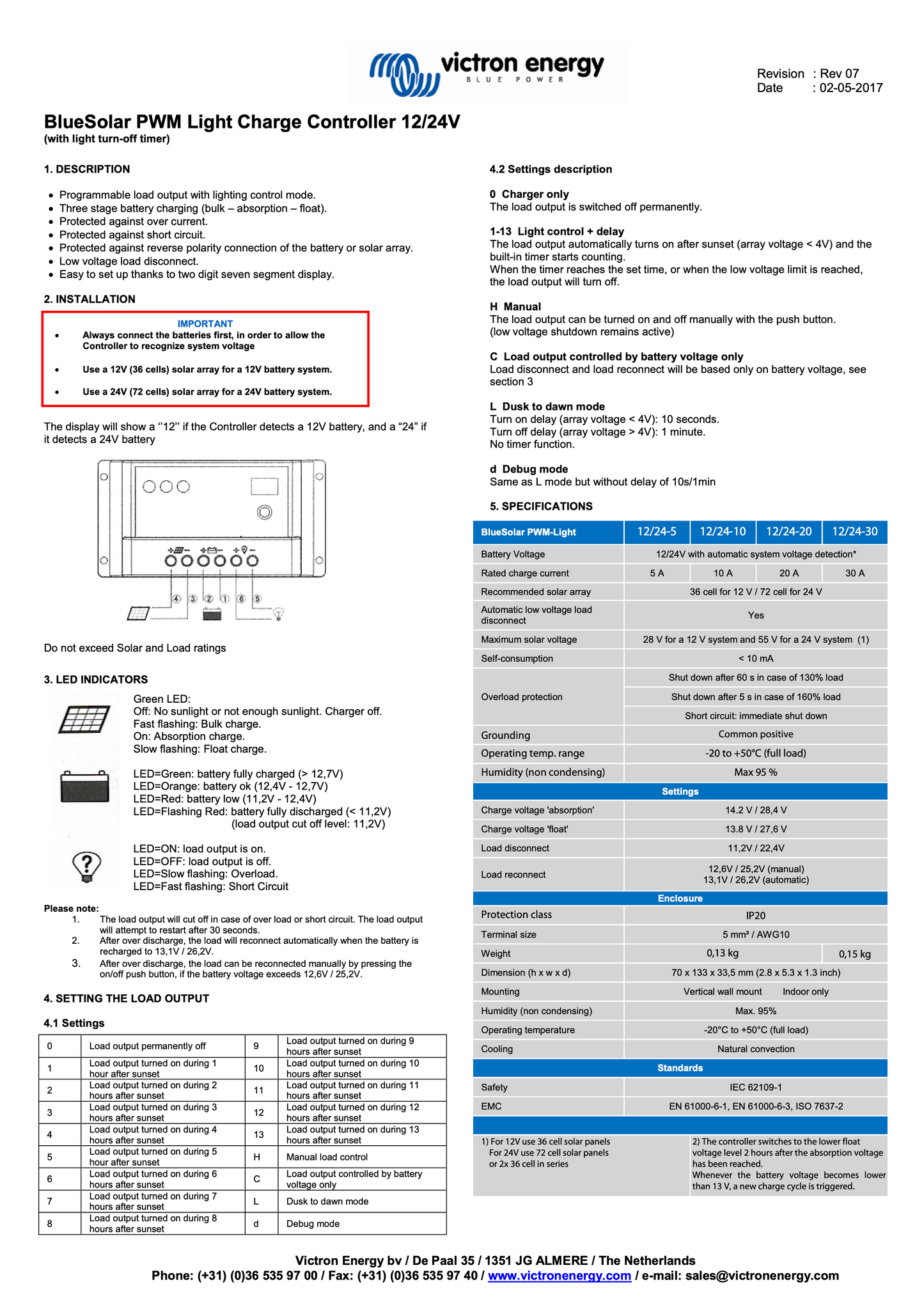

• Day/night timing options: see manual for details

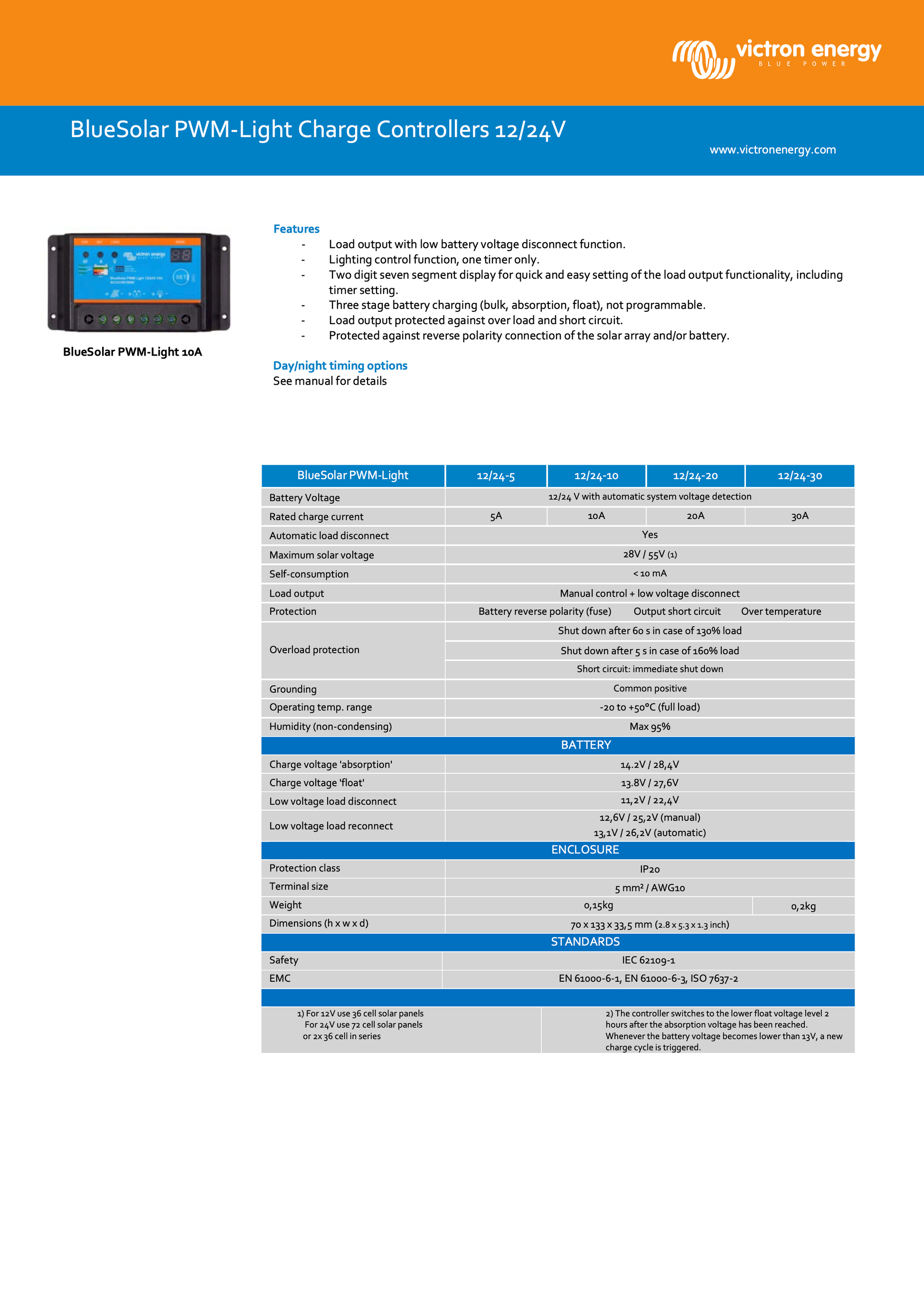

Data Sheet

Click here for data sheet

Shipping & Returns

Shipping costs will be shown during checkout based on the address.

The standard returns policy applies to this product (available at the end of the page)


92 x 135 x 27 mm
